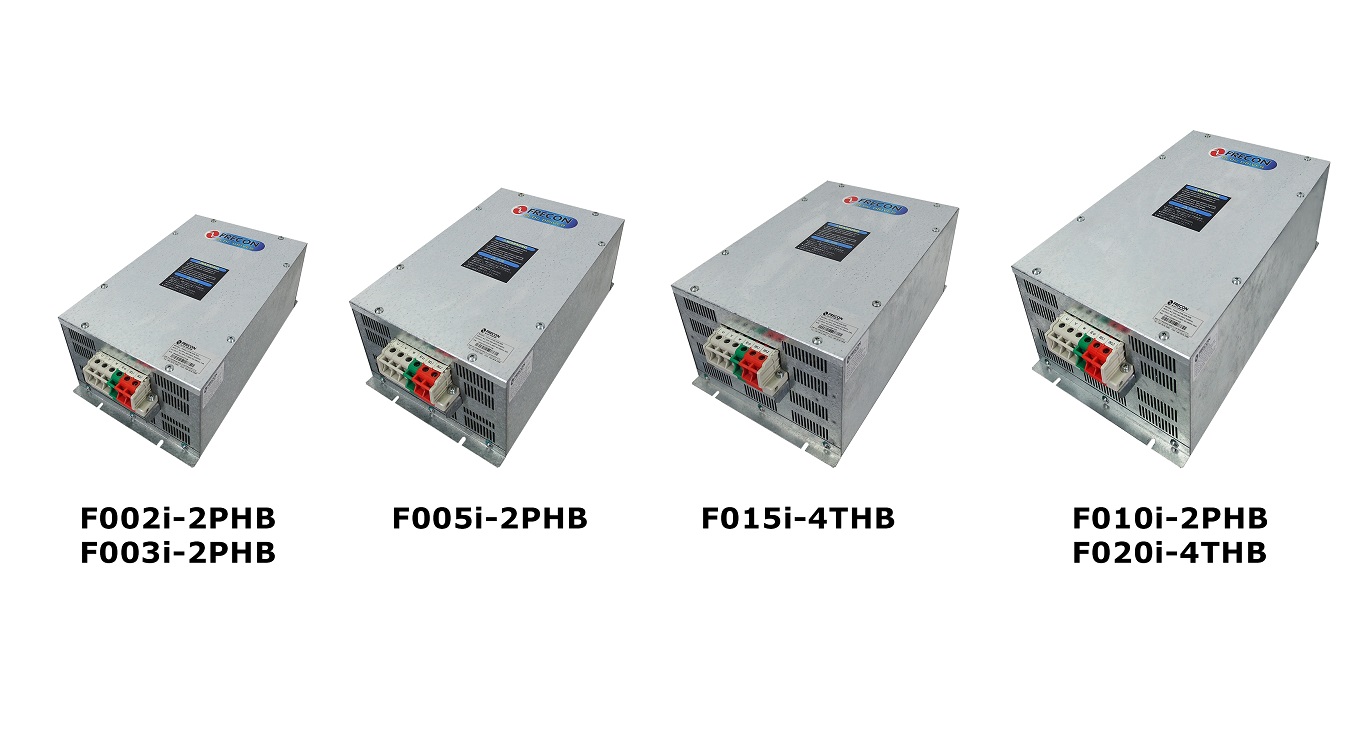

FRECON - BLDC H Series
Productype :
Compressor Driver
Name :
High Performance BLDC Compressor Driver
Series & Size :
2PHB Series 9 to 25 Arms 2SHB Series 5 to 34 Arms 2THB Series 34 Arms 4PHB Series 10 to 18 Arms 4THB Series 10 to 34 Arms
Description :
- High performance drive with position-sensorless vector control - Smooth torque with sinusoidal PWM (Drive 180 degree) - Low starting current with synchronized position control - High COP with optimum torque per ampere control - Wide speed range operation with field weakening control - High efficiency drive with 2-Arms modulation technology - Sine-wave input current for PFC driver model - Annoying sound reduction by variable switching frequency (selectable) - Built-in coil preheating function (no need crank case heater) - Compliance with European Standards
Request Manual

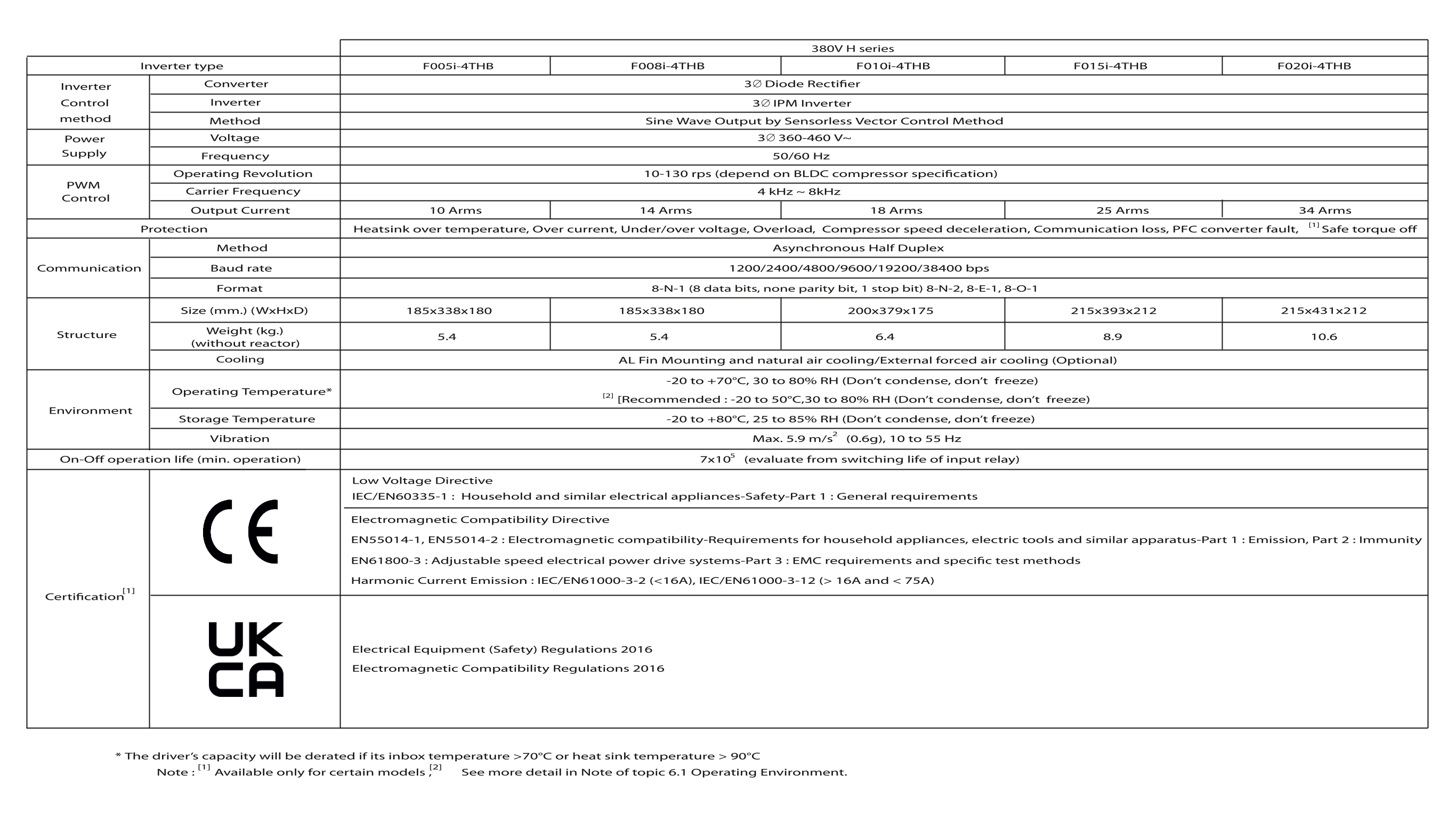

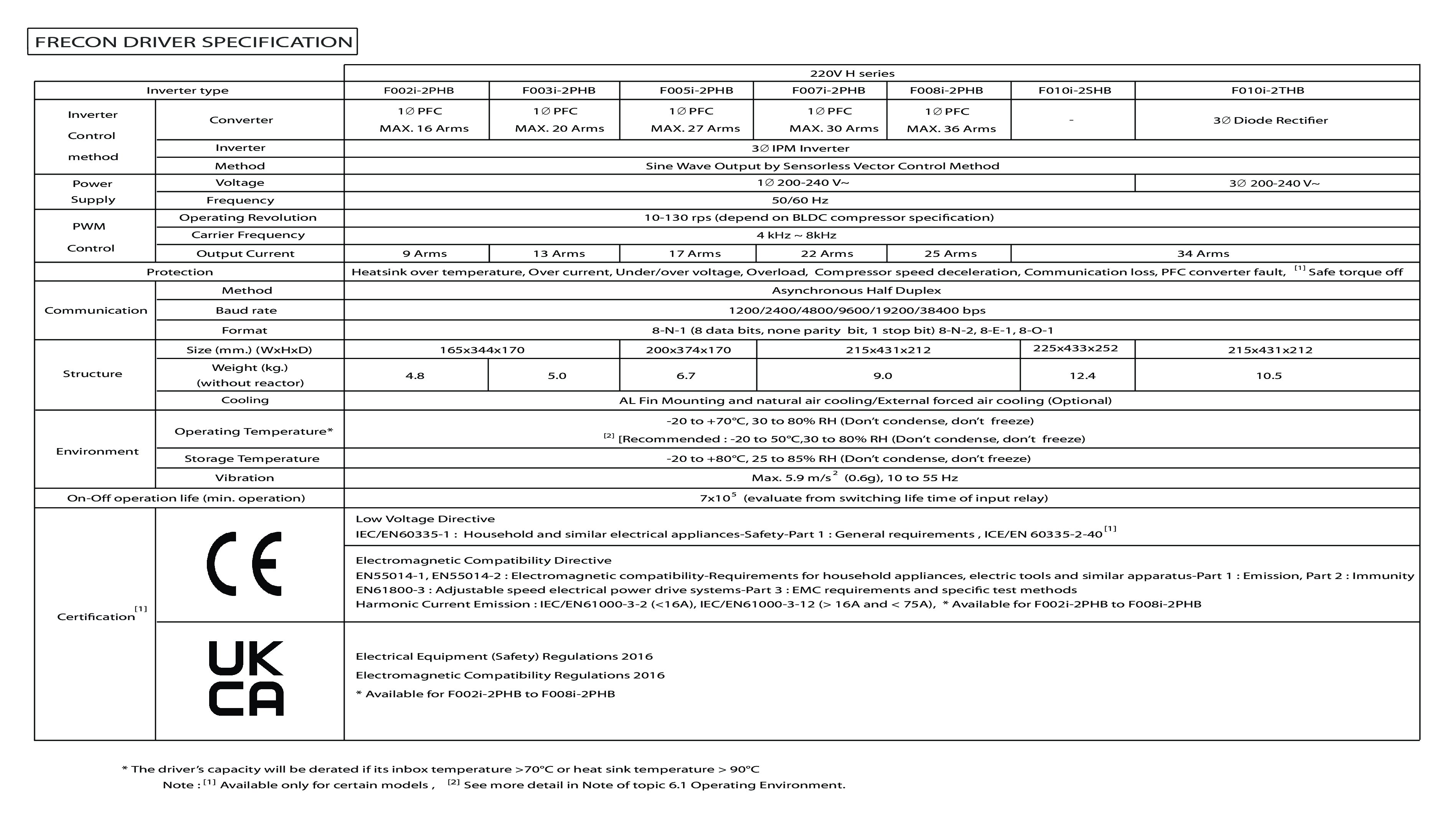

General Specification
Standard Inverter
|
Servo Drive
|
Elevator A.R.D.
|
Compressor Driver
|
Solar Inverter
|
Regenerative Inverter
×
